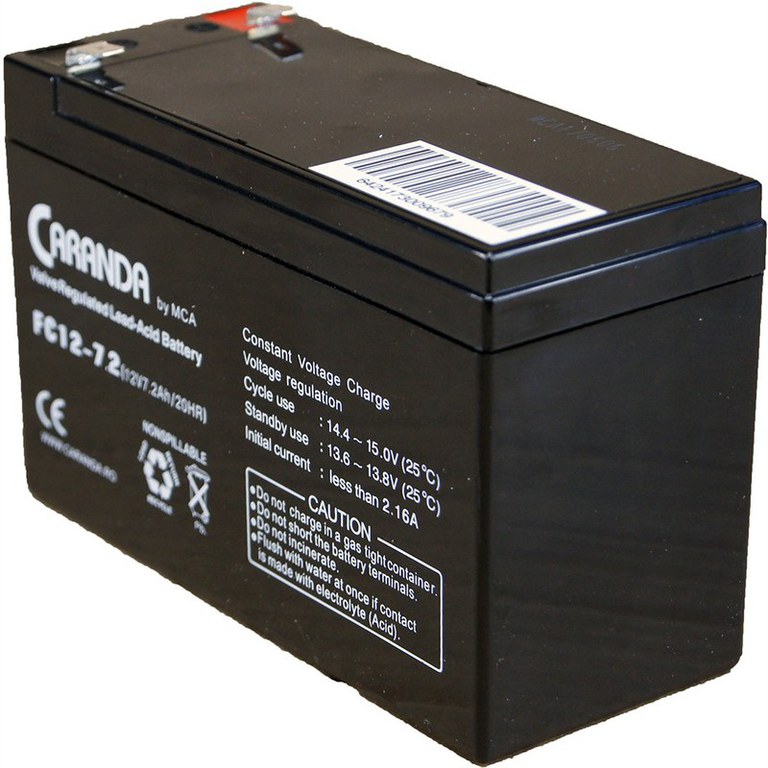

Acumulator VRLA Caranda 12V 7.2A F2
Acumulator VRLA Caranda 12V 7.2A Caracteristici generale: - Can be used at vertical or horizontal orientation - High Reliability and Good Quality - High gas recombination efficiency - High Power Density - Maintenance-Free Operation Domenii de aplicare: - UPS & EPS - Emergency lighting Systems - Medical Equipment - Cable TV Systems - Alarm Systems - Electric Test Equipment - Security Systems Nominal Voltage: 12V(6 cells per unit) Design Floating Life @25℃: 5 Years Nominal Capacity @25℃( 20 hour rate@0.36A,10.50V): 7.20Ah Capacity @25℃: 10 hour rate (0.68A,10.8V) 6.80Ah 5 hour rate (1.29A,10.5V) 6.45Ah 1 hour rate (4.70A,9.6V) 4.70Ah Internal Resistance Full Charged Battery@25℃: ≤22.0mΩ Ambient Temperature Discharge: -20℃~50℃ Charge: -20℃~50℃ Storage: -20℃~50℃ Max. Discharge Current@25℃ 108A(5s) Capacity affected by Temperature (10 hr Capacity ) 40℃: 102% 25℃: 100% 0℃: 85% -15℃: 65% Self-Discharge@25℃ per Month 3% Charge (Constant Voltage) @25℃ Floating Charge: Initial Charging Current Less than 2.16A / Voltage 13.6-13.8V Cycle Charge: Initial Charging Current Less than 2.16A / Voltage 14.4-14.9V Dimensiuni: Length(mm) 151±1 Width(mm) 65±1 Heighth(mm) 94±1 Total Heighth(mm) 100±1 Weight(kg) 2.13±3%
